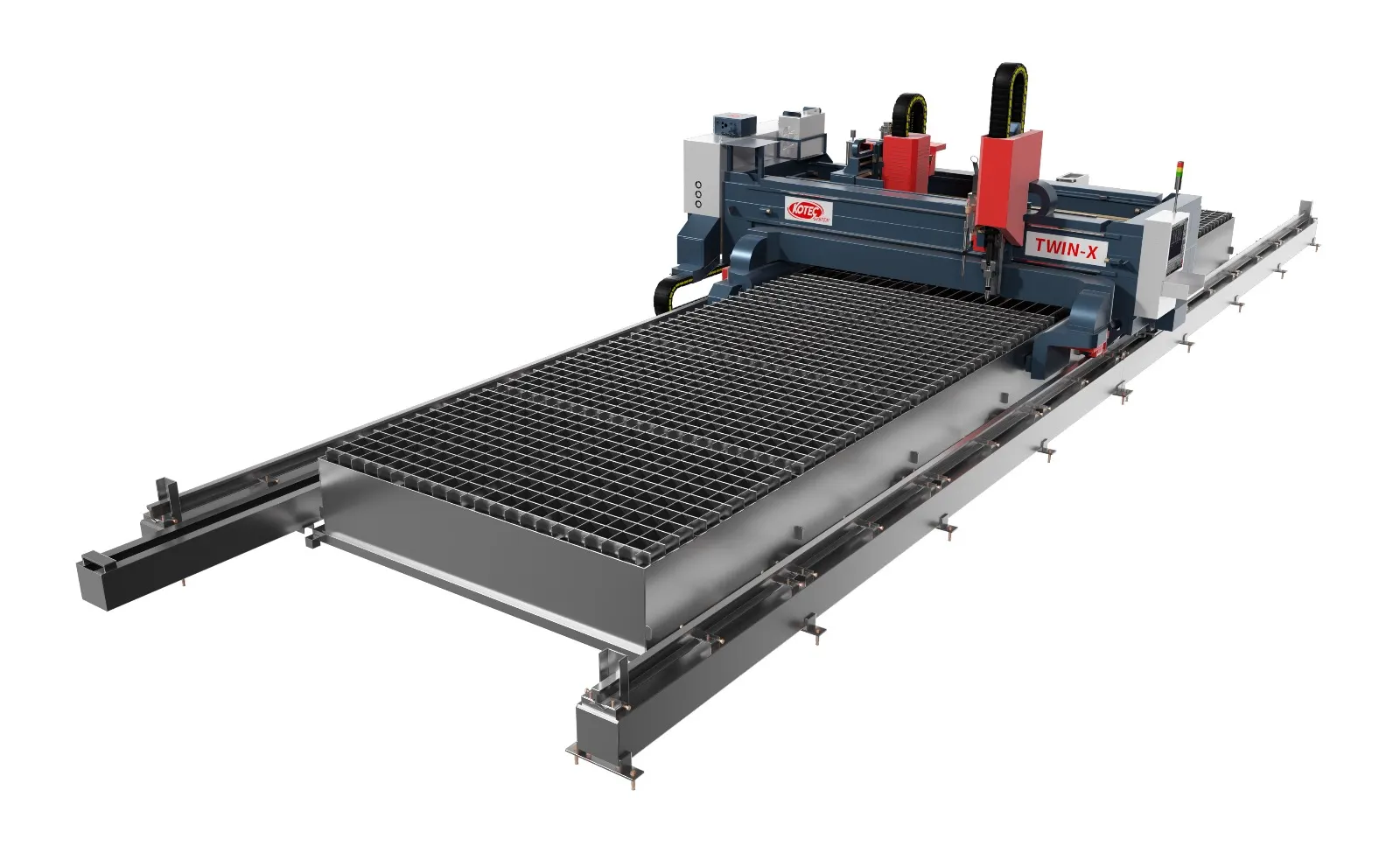

The CNC Twin-X Raw Material Drill & Plasma Cutting Combined Machine from KOTECSYSTEM is a highly efficient solution that combines two key fabrication processes—drilling and plasma cutting—into a single machine. This combination allows for faster and more precise processing of raw steel plates, improving overall productivity and saving valuable workshop space.
Key Features
Dual Operation
Combines drilling and plasma cutting functions to handle raw steel plates in one setup, maximizing throughput.
High Precision
Equipped with advanced CNC controls, ensuring accurate drilling and clean, burr-free plasma cuts every time.
Strong Drilling Capability
Supports carbide drills up to 50 mm in diameter, perfect for processing thick and heavy-duty steel plates.
User-Friendly Control
Runs on a Windows-based platform with full USB and CAD file compatibility for seamless and easy programming.
Space & Cost Efficiency
Eliminates the need for separate machines, significantly reducing factory floor space and operational costs.
Industrial Applications
- Structural steel fabrication & frameworks
- Pre-engineered building (PEB) manufacturing
- Heavy machinery & industrial parts production
- Bridge and infrastructure steelwork
Integrated Excellence
The Twin-X Combined Machine is an ideal choice for companies looking to boost efficiency by integrating two essential steel processing steps. Its robust design and user-friendly operation make it a valuable asset for modern steel fabrication shops.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Twin-X |
| Structure | Gantry movement |
| Controller | Industrial CNC |
| Material Processing Capability (W×T) | 3,000 × 45 mm (Length can be customized) |
| Max. Drill Bit Capacity | Tungsten carbide drill (Oil HOLE) : Ø12 – Ø40 mm |
| Drill Spindle Motor | Built-in Spindle motor (BT-50) |
| Clamp Sets | 4 sets |
| Automatic Tool Changer (ATC) | 6 sets |
| Work Table | Copper Pin & Grating Type Wet Work Table |
| Dimensions (W×L×H) | 5,850 × 2,550 × 2,300 mm |
| Machine Weight | 7,100 kg |
